ELSTEIN IRS ROD HEATERS

Elstein IRS rod heaters are ceramic infrared heaters, designed for operating temperatures of up to 750 °C. With the help of MPO and MPO/2 mounting profiles, surface ratings of up to 72.0 kW/ m² can be realised.

IRS series heaters have one mounting socket on each side, with which they can be fixed to a mounting profile with fixing springs.

The rod shaped design makes IRS heaters preferably suitable for linear heating tasks.

An example for linear heating tasks can be found in the timber industry, where IRS rod heaters are used to pre-heat edge strips.

Elstein IRS rod radiators are available in two designs and cover the power range from 200 W to 600 W.

Dimensions :

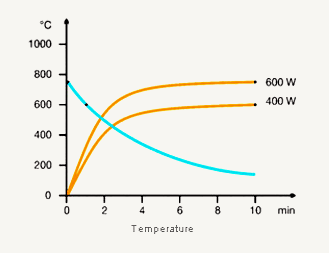

Technical Details :

Type // Weight g // Wattage W IRS 95 400 600
IRS/2 50 200 300
Surface rating kW/m² 48,0 72,0
Typical operating temperature °C 550 650
Maximum permissible temperature °C 750 750
Wavelength range µm 2 - 10

Further Information :

Standard Design Thermocouple Heater Variants
operating voltage 230 V integrated thermocouple type K (NiCr-Ni) special wattages
leads 60 mm description T-IRS // T-IRS/2 special voltages
two mounting sockets TC leads 100 mm extended leads
two fixing springs power leads with ring terminals

Consideration :

The power can be controlled by using thermocouple heaters with TRD temperature controllers, TSE thyristor switching units and other accessories.

IR radiation panels can be assembled using mounting profiles MPO.

The national safety regulations must be complied with for the respective application, for example, the IEC or EN standard 60519-1, Safety in electrical heating installations.

Further information and safety instructions are mentioned in the mounting sheet, which is attached to each heater.
