INFRARED HEATING SYSTEMS

BSI Series

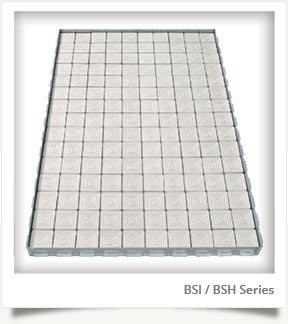

Elstein BSI and BSH construction panels are infrared radiation areas, which can be equipped with the ceramic IR panel heaters HTS or HSR.

The ceramic infrared panel heaters are fixed to the MBO mounting sheets and are surrounded by a housing of frame and capping sections.

All housing parts consist of stainless steel resp. Aluminium so that heaters with high power can be used, too.

The BSI and BSH construction panels are factory assembled so that the user only has to do the wiring, insert the heating panel in a steel section frame to be made on site and connect the panel with the electricity mains.

Elstein construction panels are suited for building infrared heating areas in any dimensions.

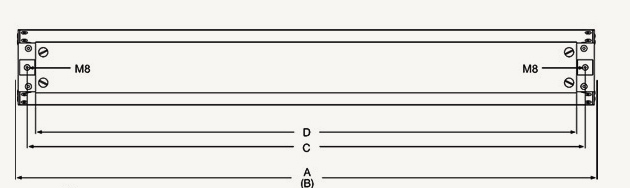

Dimensions :

Datasheet PDFDatasheet PDF

EBF Series

Elstein EBF construction elements are assembled in our factory. They can be equipped with Elstein ceramic panel heaters FSR, HSR/1, HTS/1, SHTS/1 and FSR/2, HSR/2, HTS/2, SHTS/2, whereby it is also possible to combine different heater designs and wattages of the same types of heaters.

The ceramic infrared heaters mounted in stainless steel reflectors are inserted in the lower part of an extruded, anodised aluminium section with an H-shaped cross-section. Aluminium capping sections close the wiring space in the upper part of the section and die cast end pieces close the end faces.

The user only has to do the wiring, screw-in the EBF elements in a steel section frame to be made on site and connect up with the electricity mains.

Elstein EBF construction elements are available in four lengths and can be fitted together to form flat or curved heating panels in any installed position.

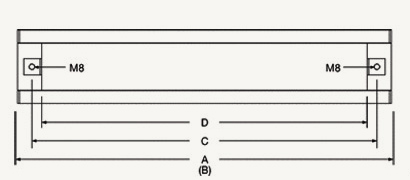

Dimensions :

Datasheet PDF

EBI/R Series

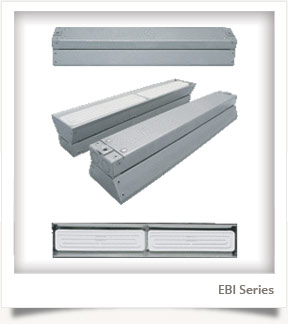

Elstein EBI construction elements are infrared heating systems, whose housing parts are made from stainless steel. EBI Systems are corrosion resistant and mechanically as well as thermically very stable. Therefore they are very suited for applications, where such requirements have to be fulfilled; for example in the food industry.

Elstein EBI construction elements are assembled in our factory. They can be equipped with Elstein ceramic panel heaters FSM, FSR, HTS/1, SHTS/1, HSR/1 and FSM/2, FSR/2, HTS/2, SHTS/2, HSR/2, whereby it is also possible to combine different heater designs and wattages of the same types of heaters.

The user only has to do the wiring, fix the EBI elements in a steel section frame to be made on site and connect it up with the electricity mains.

Elstein EBI construction elements are available in five lengths and can be fitted together to form heating panels in any installed position as well as geometry.

Datasheet PDF

By quoting the REF/250 or REF/125 construction set designations and the heater type required, the REO/250 and REO/125 reflectors are available fitted with the FSR, HFS, HSR, HTS and SHTS series ceramic infrared panel radiators.

The REO reflectors are made from polished stainless steel. They are used to hold and fix panel heaters with the dimensions 245 mm x 60 mm and 122 mm x 60 mm as well as for reflecting the IR radiation in the direction of the material to be heated.

The REF system can be used to assemble flat or curved IR radiation areas. As the electrical connections of the REF system are exposed, Elstein REF construction sets must be installed in closed heating areas or industrial ovens.

The Elstein range of products includes the EBI and EBF construction elements and the BSI and BSH construction panels as fitted heating area solution in which the electrical connections are situated in a housing.

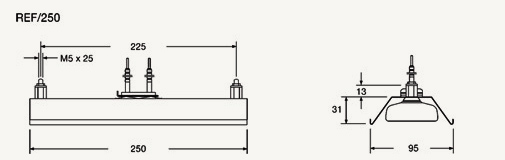

Dimensions :

>

Datasheet PDF

REF Series

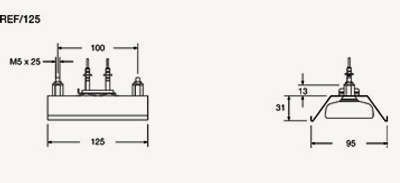

Dimensions :

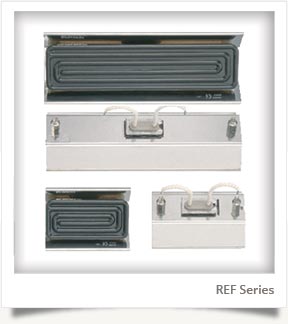

By quoting the REF/250 or REF/125 construction set designations and the heater type required, the REO/250 and REO/125 reflectors are available fitted with the FSR, HFS, HSR, HTS and SHTS series ceramic infrared panel radiators.

The REO reflectors are made from polished stainless steel. They are used to hold and fix panel heaters with the dimensions 245 mm x 60 mm and 122 mm x 60 mm as well as for reflecting the IR radiation in the direction of the material to be heated.

The REF system can be used to assemble flat or curved IR radiation areas. As the electrical connections of the REF system are exposed, Elstein REF construction sets must be installed in closed heating areas or industrial ovens.

The Elstein range of products includes the EBI and EBF construction elements and the BSI and BSH construction panels as fitted heating area solution in which the electrical connections are situated in a housing.

Datasheet PDF
